This page describes how I configure Mandriva on my systems.

Plenty of things I put here are focused on how I set up my hardware; so that next time (if any), I will not have to figure out what I did to get things going the last time. And if you wonder why I'm thinking of installing again: simple, if Mandriva and Linux are to get better, what else to do then to test the betas and release candidates and report bugs?
By the way, some of these instructions are very much related to the hardware that I'm installing this on, so I have added the spec of my systems (both hardware configuration and software config files).
To cover more hardware I installed on my own desktop (zurich) and my laptop. Additionally I installed it on my server (which has actually been replaced with different hardware - it went from a PII 350 to a PIII 866, I did a harddrive transplant and a fresh install after the old machine was up for 450 days straight).

I must say that this page will become quite a bit shorter than its predecessors; many issues are no longer present - the pwc driver is now included and works fine, the lirc drivers have been fixed, the K3B burn speed fix is now included, there's no more conflict between the webcam microphone and any other audio card/device... I installed from iso image on the harddrive on zurich and paris, which means I don't need to set up urpmi to find the local rpms in the iso image(s) - it already knows and mounts the image as required. Alltogether Mandriva 2005 LE is the best Mandriva/Mandrake distribution to date, and it's certainly one of the best distributions full stop.

I have used the clubmember download dvd which should actually be exactly the same as the public download edition.

commands to type have this colour and font
keystrokes/presses have this colour and font
cli = command line interface
lmb = left mouse button, mmb = middle mouse button, rmb = right mouse button

Most of the commands in this and subsequent sections are executed as root, use the command su (and give your root-password when prompted) to become 'root' and then execute those commands.

Resources configuration steps

Return to top

To get a hold of the true power of urpmi, the Swiss knife of rpm-installing, you must first set up your sources/repositories. I'm assuming a functional internet connection at this point. So head on over to the easy urpmi page and follow the 3-step instructions. Most important are plf and necessary for that the contrib media repositories, as playback of encrypted dvds will not be possible without plf-free and plf-nonfree. Quite a few things are not on the 4 cds, so it pays off to add main too.

For more information on setting up urpmi, read the Resources Configuration and Software Install HowTo by Zeb.

After configuring the repositories, it is really easy to install software, with RPMDrake (Mandrake Control Centre - Software Management) or urpmi.
urpmi [packagename(s)]
Installs the package / program; it automatically gets all dependencies. Note also that you can put more than one programname/packagename in one command.
urpmi --noclean [packagename(s)]
is actually what I use most of the time, since then the downloaded files are in /var/cache/urpmi/rpms/
where I can easily retrieve them to use again on another computer for instance. Next to --noclean, other interesting options are --fuzzy and --test.

During system installation from cd/dvd one is offered the option of copying all installation files to the local harddisk, and it's also possible to install from iso image on the local drive. In both cases, urpmi will be able to find the installation packages (rpms) on the local system, so there's no need for me to explain how to set the system up in that way.

Nvidia 3d driver

Return to top

You can follow my instructions here (the most recent nvidia driver package is NVIDIA-Linux-x86-1.0-74(?something) by now, bear that in mind when reading that page). Note that you have to have the correct kernel sources installed. Use the command
urpmi kernel-source
to install the correct package.
As with Mandrakelinux 10.1 I had to put nvidia in the file /etc/modprobe.preload to get X to start at boot, after installing the nvidia driver.

Update: you may want to use dkms for this driver.

System monitoring

Return to top

To be able to keep an eye on the state of my system, I use gkrellm; to have cpu-temperature and motherboard voltage readouts, lm-sensors is needed. To install those, do:
urpmi lm_sensors gkrellm
Next to setup the sensor system:
and just followed instructions (just accepted all default proposals). This creates the file /etc/sysconfig/lm_sensors which indicates which modules must be loaded for lm_sensors to function properly. sensors gives the output from the sensors on the motherboard if the necessary modules are loaded. Of course the program gkrellm is much nicer for continuous display of your system stats (note that on the mobo and cpu temp in gkrellm I have to use a factor of 0.1 to get the right value; this apparently happens with certain sensors/chipsets/mobos). I noticed that the fanspeed of the CPU fan and the casefan are actually detected, but it seems at the low revs they make, the BIOS actually sets the value to 0 most of the time...

K3B - cd and dvd burning

Return to top

Contrary to older Mandrake versions (before Mandrakelinux 10.0), no setup is necessary. Kernel 2.6 can burn directly to ide devices without using ide-scsi emulation, and Mandrake has packaged K3B in a way so that it can also burn dvd's - it should be able to burn dual layer dvd media, but since my drive can't burn those and they are too darn expensive at the moment, this is not a hot issue for most...

Now a few more words on my dvd burner: NEC ND 3500. I bought this drive because it has a firmware upgrade tool for Linux. So no booting with bootfloppies, or even worse: having to put your drive into a windows machine in case the vendor only provides windows executables to upgrade the firmware. Thanks go to Herrie for the NEC firmwares and Liggy for the firmware update tools. (Note: you have to be root for the necflash program to work.)
Anyway, I can recommend this drive, it is fast and burns well. Note: there's a big point to buying a drive that doesn't need MSWindows (so either have a DOS update tool via bootable floppy or a Linux native update tool; as far as I know, Plextor is the only drive manufacturer that provides a Linux native firmware flash tool for their own drives, in other cases it's the welcome work of others that makes Linux flash tools a reality) to update the firmware, since new dvd media are released onto the market all the time, and the drive deals better if the proper media burn settings are known to it.

DVD playback with mplayer and xine (and frontends to those)

Return to top

Now the stuff that is necessary to watch dvds (that Mandrake, or any other linux vendor for that matter, is not able to include, since it would violate some stupid US law) has to be installed:
urpmi libdvdcss
will get the necessary decryption to have xine or mplayer playback dvds without any problems. (Btw, if you start mplayer from the cli but you want the gui version and/or rightclick menus, just type gmplayer instead of plain mplayer... Of course you need to have the gui version installed, urpmi mplayer-gui to get it.)

I have done some more digging, and on the Videolan site where libdvdcss is housed I found the info I have been looking for for quite a long time: on Linux with libdvdcss, the region code of your drive is not relevant, nor is the region code of the discs you play. The RPC2 counter just doesn't count, on drives that have no region set yet, this will stay that way - this I verified myself. You can check the drive's region on Linux with dvd_region.c which you can get from here.

Oh, for playback of various video formats, you may want to do, as root:
urpmi win32-codecs xine-win32

Home LAN computer names

Return to top

I did the following to set the hostnames so that with CUPS I could print over the network (if not set, there will be a problem between the ethernet address and the name that is given during installation; other hosts will not know the host with the printer by name, just address, but the name plus printer will show up in the cups www control panel), modify /etc/hosts to include the ethernet address and the name by which the host is known to itself.
echo " paris" >> /etc/hosts
echo " neuchatel" >> /etc/hosts

This way, the client can find the host that has the printer connected to it since it can do address translation from the host name to the right ethernet address. Naturally, CUPS is just one example; this makes it possible for my machine to know all other machines by name, from web browsers to ssh and ftp on the command line.

Setting up the IR Remote Control

Return to top

To get the remote control that came with my tv-card working, I needed LIRC, so I issued the following commands, as root:
urpmi lirc lirc-remotes
cp /usr/share/lirc-remotes/hauppauge/lircd.conf.hauppauge /etc/lircd.conf
cp /usr/share/lirc-remotes/hauppauge/lircmd.conf.hauppauge /etc/lircmd.conf
vi /etc/sysconfig/lircd

(feel free to use any other text editor instead of vi) where I changed the following things:
HWMOD=UNCONFIGURED I replace with the following 2 things:

DEVICE=/dev/lirc/0 I replace with the following:

Finally, to start things I issued these 2 commands:
service lircd start
service lircmd start

For the lircmd there are some extra things necessary in the /etc/X11/xorg.conf file, namely the extra mouse section and the related mouse setting in the server section at the end of the file.
These are the relevant lines:
#added aRTee:
Section "InputDevice"
Identifier "LircMouse"
Driver "mouse"
Option "Device" "/dev/lircm"
Option "Protocol" "IMPS/2"
Option "Buttons" "5"
Option "ZAxisMapping" "4 5"

and at the end:
Section "ServerLayout"
Identifier "layout1"
InputDevice "Keyboard1" "CoreKeyboard"
InputDevice "Mouse1" "CorePointer"
# added aRTee
InputDevice "LircMouse" "SendCoreEvents"
Screen "screen1"

I just continued to use the file (that at the time I created with a lot of trial and error) in my homedir ~/.lircrc that makes lirc and mplayer work together. Make sure you do switch on lirc support of mplayer and xine. And voila. So now I can move the mouse with the remote, fully control mplayer from the sofa, go through menus in xine, like with a normal dvd player.

KDE / graphical user interface configuration steps

Return to top

Most of the following things are done by the user, in the users home directory (/home/[user]) or with gui tools. Note that I did most of this before, I just continued to use the same /home partition and home dir.

First things first, which for me means to get usable (windows) behaviour. Meaning: not the standard behaviour that the most used OSes have, but something that you (I really) can actually work with. I want/need/require (hey it's my machine, I can require things of it, right?) the following:

  1. window focus follows mouse (meaning, the window that the mouse pointer is on/in is the one that is active, so when I type it will go into that window)
  2. clicking in any window with the lmb, mmb or rmb does not bring the window to front (meaning, I can actually select something in a window with the lmb without the window popping to the front)
  3. move a window without having it on top
  4. move a window without having to go to the window frame with the mouse pointer
  5. resize a window without having it on top
  6. resize a window without having to go to the window frame with the mouse pointer
  7. bring a window to the front without having to go to the window frame with the mouse pointer
  8. send a window to the back without having to go to the window frame with the mouse pointer
  9. single click on icons to launch applications or descend into folders

It must be my lucky day, because all this can easily be done with KDE. Actually, points 3 to 8 are readily available already, without having to change anything in the settings. Note that point 7 is necessary since I wanted that clicking in a window does not bring it to front (which is the case in the standard less usable behaviour). 3 and 4 is done with alt+lmb, 5 and 6 with alt+rmb, 7 and 8 with alt+mmb. To get 1 and 2, start KDE control center: Menu => what to do => administer your system => configure KDE. (Alternatively there are entries for all subsections of the KDE control centre in Menu => Configuration => KDE, but we'll be doing more than just this.)
I have gotten a bit creative and made a shockwave flash page (warning: ~600KB) on what this behaviour looks like.
Now expand the LookNFeel section by clicking on the plus sign in front of it. Go to Window Behavior, and choose the Policy: Focus Follows Mouse; then unselect 'auto raise' and 'click raise'. At the top, go to the second tab 'Actions' and in the 'Inactive Inner Window' make sure all three entries say: 'Activate & Pass Click'.
The lower part should have alt as the modifier key, and lmb+mod key=move, mmb+mod key= toggle raise & lower, rmb+mod key = resize. Don't forget to click apply at the bottom.
Now that we're here, we may as well set the single click part, so that a single click on a desktop icon will do to launch whatever is being clicked. Expand (on the left side) the Peripherals section, select the 'mouse' entry, and select 'Single-click to open files and folders' in the Icons-section. BTW in the 'Advanced'-tab you can adjust the speed of the mouse (among other things) if it's not to your liking.

Now that the KDE CC is open anyway, let's expand the 'LookNFeel' section again, and select 'Behaviour'. If you don't want to have icons on your desk with /mnt/cdrom2 /mnt/cdrom /mnt/floppy written to them, you can deselect the 'Display devices on desktop' checkbox. Hint: if you then right click on your desktop and select Create New => Link to Location (URL) you can just add a name, like: my dvdrom and a location: /mnt/cdrom2 (which is where my dvdrom gets mounted; check that in /etc/fstab). If you choose this setting, you also don't get icons for usb-storage devices (external harddrives, memory cards, photo cameras that comply with the usb-storage protocol).

Something else that I like is Icon Zooming, in case you don't know you can check out what that looks like (~320KB). Right click the panel and select 'Panel Menu' => 'Configure Panel', in the new window that opens select the 'Appearance' entry on the left side, and tick the box: "Enable icon zooming". This dialog is also in the 'look and feel - panel' section of the KDE Control Center.

Setting up the extra mousbuttons on my Logitech MX700

Return to top

To be able to use the extra mouse buttons that I have on my MX700 wireless optical USB mouse I did the following:
urpmi imwheel
as root, and as regular user:
echo "#!/bin/sh" > ~/.kde/Autostart/mx700backforth
echo "killall /usr/bin/imwheel" >> ~/.kde/Autostart/mx700backforth
echo "imwheel -k -b "67"" >> ~/.kde/Autostart/mx700backforth
chmod +x ~/.kde/Autostart/mx700backforth

plus, of course the following (also as normal user, in the home-dir) to make the right .imwheelrc:
echo '".*"' > ~/.imwheelrc
echo "None, Down, Alt_L|Left" >> ~/.imwheelrc
echo "None, Up, Alt_L|Right" >> ~/.imwheelrc

With these settings/files the thumb buttons on the mouse are "back" and "forward" in browsers/konqueror, and the wheelbuttons function as if the wheel is continuously being scrolled respectively up or down. My /etc/X11/xorg.conf mouse section contains the following (only the relevant section is shown here; you can also have a look at my whole /etc/X11/xorg.conf):

Section "InputDevice"
Identifier "Mouse1"
Driver "mouse"
Option "Protocol" "ExplorerPS/2"
Option "Device" "/dev/mouse"
Option "ZAxisMapping" "6 7"

Note also that the 2.6 kernel works in a way that usb and ps/2 mice both work, no extra section is required anymore, except for the LIRC mouse daemon lircmd.

Setting up java in Konqueror, Mozilla and Opera

Return to top

Before starting on the closed source SUN java version, I'd like to point out that there are Free (in the free beer _and_ the FREE speech sense) Java implementations, and they are included in Mandriva 2005 LE.
All you have to do if you want to try is:
urpmi kaffe

If those Free java implementations don't suit your needs, you may want to go for the SUN non-free version, after deinstalling with urpme kaffe.
The following section is practically a direct copy-paste from the Mandrakelinux 10.1 configuration page... there might be some things I still have to update, such as the current SUN java version... just take the latest recommended one from SUN.
If you're a clubmember and you set up the commercial repository (more info via the MandrakeClub website), you have the easiest path to install java. All you have to do is this:
urpmi j2re
then set up your browsers to use java:
Konqueror: Settings > configure Konqueror > Java & Javascript: enable Java globally.
Mozilla: Edit > Preferences > Advanced, enable Java

It's not so much more work to get Java directly from SUN, go to their download page: and select Download J2SE JRE. Then follow the instructions at
chmod a+x j2re-1_4_2_05-linux-i586-rpm.bin
[agree to the license agreement]
urpmi j2re-1_4_2_05-linux-i586.rpm
ln -s /usr/java/j2re1.4.2_05/bin/java /usr/bin/java

(note: there was already a link in: /usr/lib/mozilla/plugins/ pointing at /usr/java/j2re1.4.2_05/plugin/i386/ns610-gcc32/, but the last ln command was necessary to get java into the standard executable path.)

Setting up flash in Konqueror, Mozilla and Opera

Return to top

Just as with Java, there are fully Free (in the free beer _and_ the FREE speech sense) flash players. You just have to do:
urpmi gstreamer-swfdec
and give it a try, and if it doesn't suit your needs, uninstall it with urpme gstreamer-swfdec and try:
urpmi gplflash
Naturally, you can get the non-free (as in speech) player from Macromedia (nay, Adobe).

After installing the flash player, of course you have to make your webbrowser aware that it exists.

Laptop hibernate and suspend

Return to top

On my laptop I knew suspend to disk a.k.a. hibernate worked fine with Mandrakelinux 10.1. On Mandriva 2005 LE however, suspend to RAM worked properly, for the very first time, but suspend to disk didn't. Switching to the multimedia kernel was what finally brought on double happiness, do as root:
to install it. With this, both the suspend to disk and the suspend to RAM functions work well - I recall just one single time where it wouldn't wake up from hibernate, otherwise it's been fine.

Wireless networking setup

Return to top

I have used 3 different wireless interfaces with Mandriva 2005 LE: a Prism (Intersil) based Fujitsu Siemens USB 802.11b dongle (also used with Mandrakelinux 10.1), a Prism54 based Netgear b/g PCMCIA card and an Atmel based 3COM b PCMCIA card (both known to work with Linux - many cards need NDISwrapper but these don't; always give preference to hardware that has proper Linux compatibility and/or support; I will look up the exact type numbers once more, I just borrowed these for a while).
To my big surprise the USB Prism based dongle didn't work. I have rebooted the Mandrakelinux 10.1 system and it still worked fine there; then I swapped kernels: I used the Mandrakelinux 10.1 kernel in the new system, which didn't work, and the Mandriva kernel in the old 10.1 system, which worked fine too, so I have nailed the issue down to not being a kernel issue. If anyone can tell me how to debug this I'm all ears... Oh by the way, I followed the same steps as I did for Mandrakelinux 10.1.
As for the 3COM and the Netgear cards, they worked great, after I had figured out how to get them going.

First the Atmel based 3COM card: there's a development website at: through which you can find the download page: from which I got release v3.4.1.0.
Then it was just a matter of following the README:
unpack the gzipped tar file (tar -zxvf atmelwlandriver- and after entering the directory (cd atmelwlandriver) and making sure the kernel source is installed (urpmi kernel-source as root if necessary), do:
make pcmcia buildonly=release
make install
depmod -aeq

(that first command can be executed as regular user, the latter ones must be done as root).
Now use any text editor to your liking to add these lines to /etc/pcmcia/config:
##### addition #####
device "pcmf502r3"
class "network" module "pcmf502r3"

card "3Com 3CRWE62092B Wireless LAN PC Card"
manfid 0x0101, 0x0620
bind "pcmf502r3"
##### end of addition #####

Then do (as root):
service pcmcia restart
or use the GUI to restart it (mcc - system - services). After this, you should be able to set up your card as usual (mcc - networking, add device, wireless) - the device should get the name atml0; use iwconfig and ifconfig if so desired.

The steps for the prism54 based Netgear card are quite different, but again, not hard to find out via the driver support website. And again, as with the 3COM atmel based card, you must make sure you buy the correct card, not all Netgear and 3COM cards have native Linux drivers, many need the NDISwrappers and don't offer full functionality under Linux (signal strenght and such features may be lacking).
After plugging in the card, iwconfig shows the following results:
eth1 NOT READY! ESSID:off/any
Mode:Managed Channel:0 Access Point: 00:00:00:00:00:00
Tx-Power=31 dBm Sensitivity=0/200
Retry min limit:0 RTS thr=0 B Fragment thr=0 B
Encryption key:off
Link Quality:0 Signal level:0 Noise level:0
Rx invalid nwid:0 Rx invalid crypt:0 Rx invalid frag:0
Tx excessive retries:0 Invalid misc:0 Missed beacon:0

so I first installed (as root: urpmi prism2-utils which installed prism2-utils-0.2.1-0.pre26.2mdk) and since that is not enough, I kept looking and /var/log/messages mentions eth1: could not upload firmware ('isl3890'), so I knew the (missing) firmware was likely the culprit. A quick search lead to, where I found the firmware and following the instructions, placed it in the appropriate location (which I found by doing: grep FIRMWARE_DIR= /etc/hotplug/firmware.agent, which told me that the correct location is: FIRMWARE_DIR=/lib/hotplug/firmware. So I created that directory (as root: mkdir /lib/hotplug/firmware) and put the downloaded file inside under the new name (as root: cp /lib/hotplug/firmware/isl3890). At this point, taking out the card and re-inserting it got the LED to blink, and iwconfig gave the following output:
eth1 IEEE 802.11b/g Mode:Managed Frequency:2.422 GHz
Access Point: 00:00:00:00:00:00 Bit Rate:0 kb/s Tx-Power=31 dBm
Retry min limit:8 RTS thr:2347 B Fragment thr:2346 B
Encryption key:off
Link Quality:0 Signal level:0 Noise level:0
Rx invalid nwid:0 Rx invalid crypt:0 Rx invalid frag:0
Tx excessive retries:0 Invalid misc:0 Missed beacon:0

So I used the Mandrake Control Center to set up the card via Network and Internet - wireless (this is now in the correct category), with the same settings as the 3COM card.

After all this, my connections were fine. I could unplug the wired ethernet eth0 and ping google - all ok. Then I could unplug eth1 (the Netgear card) and ping just keeps going, plugging and unplugging!! The network seems to have a preference for the wifi cards, as soon as those are found the wireless link is used. And get this: plugging and unplugging eth0 (wired 100Mbit/s ethernet) and 3COM Atmel and Netgear Prism card just works! YAY! This is really impressive!

Bluetooth networking

Return to top

Well, since I had to return both pcmcia cards from the previous section, I decided to give Bluetooth networking a go... I just got too used to Mandriva 2005 LE so I really didn't want to go back to Mandrakelinux 10.1 just for the wireless USB dongle...

To connect a Linux client pc to a Linux server via a Bluetooth PAN (Personal Area Network), one needs a bluetooth interface on each machine, and some daemons and setup files on both machines. I got myself a couple of Bluetooth USB dongles (MSI-6967 Class 1 100m), and plugged them in, whilst watching the system messages (tail -f /var/log/messages). I saw that the various necessary bluetooth related modules got loaded, so I knew that indeed the dongle was supported (it seems that the Bluetooth stack is so well standardised that most or practically all dongles should be supported under Linux - naturally I had checked for my particular model of BT USB dongle before I bought it).
Supposing the server is connected to the internet, all one has to do is to change the file /etc/sysconfig/pand to contain the following:
PANDARGS='--listen --role NAP'
This modification must be done as root, and the pand service must be started as root as well:
service pand start
(alternatively one can start the server pand by hand by doing: pand --listen --role NAP)
Next, the server Bluetooth interface MAC address is needed, which can be found by doing
hcitool dev
on the server, or:
hcitool scan
on the client machine. After this, the client machine can connect to the server by doing:
pand -c xx:xx:xx:xx:xx:xx
where the x-es must be substituted with the bluetooth dongle MAC address. After (and only after!!) connecting the two machines like this, the network devices bnep0 will show up on both machines (just do /sbin/ifconfig to see them). These can be configured with ifconfig (for instance on the server: ifconfig bnep0 up and on the client machine the same with address - at this point, it should be possible to ping the server from the client and vice versa) and route (only on the client machine: route add default gw bnep0).
In this example, the server is set up as a server for internet sharing (if there's another device on the network that serves as gateway, the above route command must be adapted to point to that device/IP address).

To have the server and client pick up the ip address automatically, one can create the file /etc/sysconfig/network-scripts/ifcfg-bnep0 with the correct IP addresses, so that as soon as the pand connection is established and the bnep0 network device is present, the device gets the proper IP address. On my laptop (the client machine), that file looks like this:

For those who are using a wired internal / home range network connected through the same server, I have come across some caveats. My internal network wasn't reacheable via the wired nic and switch as soon as I connected the BT dongle with an IP in the same range, I could only manage properly once I chose another IP range - in my case, I put both BT dongles in the 192.168.1.x range, whereas my wired network uses the range 192.168.0.x.
Since my server runs shorewall, I had to set it up to masquerade the BT dongle range to the wired network range. Sure, this is most likely not proper, but like I stated before, I'm not a guru, I just make things work and once they do what I need or want them to do, I move on. However, if anyone can tell me how to make the proper setup, I'm all ears.
Anyway, if you have the client pc set up but can't connect (not sure if I had more troubles due to the client machine/laptop also having a wired connection), check with route; I had to use: route add default gw bnep0
on the laptop, where the bnep0 interface on the server had the IP address:

Bluetooth mobile phone communication

Return to top

I'm the proud owner of a Samsung SGH-D500 mobile phone (a mobile that actually carries a bit of my own work inside, but that's off-topic here), which sports a bluetooth interface. To communicate with the phone I installed the KDE bluetooth software by doing (as root):
urpmi kdebluetooth
and started it as regular user with:
which gave me a new icon on the kicker panel, without any active connections it looks like this:

and with activity it looks like this:

(BTW: another tool that may be of interest is khciconfig.)
I suppose that a logoff-logon or reboot would have given this icon too, but this was the quickest way for me. By the way, if you plug in the Bluetooth dongle, you get a message like this:

and upon unplugging this pops up:

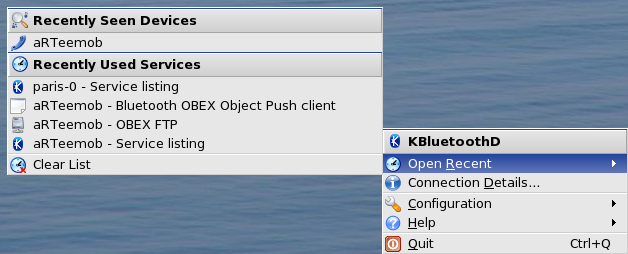

To see what devices are seen all one has to do is right click the icon and go to 'recently seen devices':

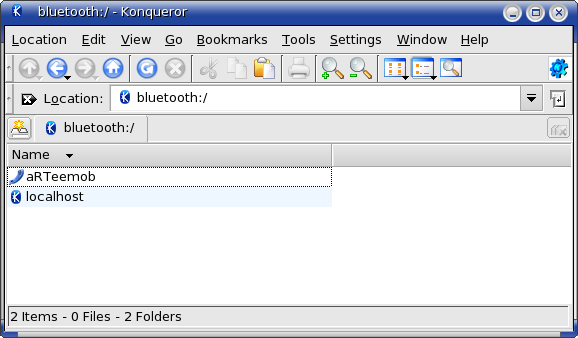

but this only works after your bluetooth devices have been seen; to trigger the detection, you can open konqueror and go to bluetooth:/ (just put that in the address bar, or if you're viewing these pages with konqueror, click that link - and pay attention: there's only a single / instead of the regular // as in http:// or ftp:// ...)

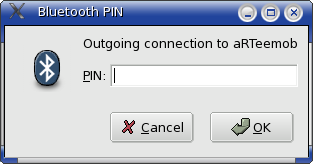

After turning on my mobile phone bluetooth interface, I could easily pair the two devices -- just select on the phone to connect to the laptop, or on the laptop in the konqueror window: click the phone icon then you have to input the same pin code on both devices, first on the phone, then on the pc:

after which the connection is made

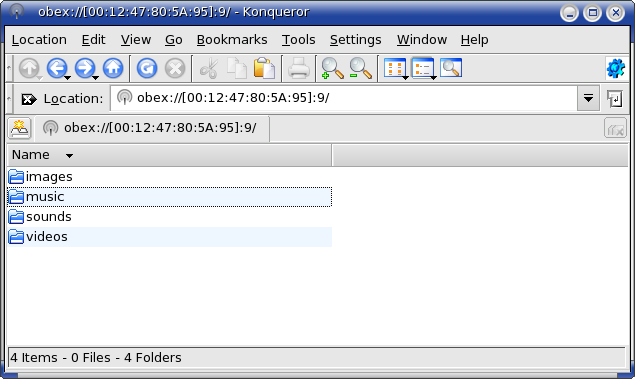

and ready to exchange data - the OBEX ftp server was the easiest way to copy things to and from the phone:

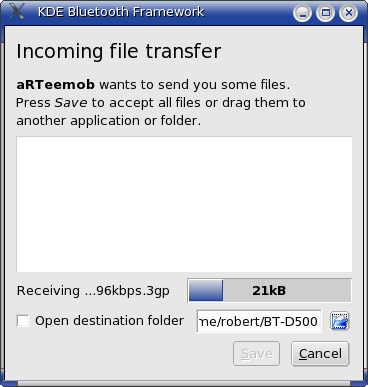

but sending things from the phone to the laptop was also straightforward - a popup shows up to ask whether to accept the file and after receiving it one can indicate where it should be stored:

and during the communication it is possible to check the signal strength of the connection by right clicking the kbluetooth icon and selecting 'Connection details':

Note that I can exchange photos/images, videos and melodies, but I haven't managed with the D500 to synchronise (address book, calendar, etc). Naturally, Samsung doesn't provide any Linux software, but the phone is advertised as syncml compliant... and I've tried kmobiletools, multisync with syncml and then some... if you know more on sync-ing the D500 with a Linux machine, please drop me a line. Oh, and I've also not been able to install java games onto the phone from the Linux laptop - for MSWindows there are workarounds to achieve this, albeit not in a straightforward way.

On a short side note, this phone supports mp3 and aac audio formats, and with 96MB built-in flash memory, it makes a nice music player, but not for so many songs. Now, with aac which offers a higher quality for the same bitrate, or rather a similar quality for a lower bitrate encoding (hence smaller file size) a bit more music can be stored and carried around on the phone. To encode files to aac file format, I installed the codec (as root, this needs the plf repositories):
urpmi faac
and then encoded some .wav files on my system to aac with the command:
faac -b 128 [filename].wav -w -o [filename].aac
Please note it is necessary for this phone that the audio data is wrapped in an MP4 container (this is done with the faac option '-w') and that the file extension is .aac (not .mp4 or .mpa which are normally also accepted for this file type). Feel free to use other bitrates and options than I do. Note that there is no manual page for faac, but
faac -h
will tell you what other options exist and how to use those. If you have a whole directory with .wav files that you would like to convert to aac files you can do:
for i in *.wav ; do faac -b 128 "$i" -w -o "$i-mp4.aac"; done
If you happen to have lots of ogg vorbis files (as I do), you can convert them to .wav files with the command ogg123 before you use the previous command (naturally, it's better to buy devices that are capable of playing ogg files). On a side note, you could also reconvert mp3 files to aac (use mp123), but unless you are going from a fairly high mp3 bitrate to a lower aac bitrate (say, from 196kb/s to 128kb/s or lower) you might as well just use the mp3 files.

A negative thing about this phone and bluetooth communications is that it's soo sloooww. I generally get around 27KB/s - and that's with the phone practically on top of the usb dongle, no distance or signal blocking issues at all... even worse than PAN networking.

All in all, using bluetooth is extremely easy in terms of bluetooth itself (also compared to info on a D500 forum related to BT on MSWindows), but special communications with non-standard (or is it not-yet-popular-enough- ...?) devices may still be cumbersome.


Return to top

If you'll read back what I wrote about Mandrakelinux 10.1 it seems all negative points I came across have been fixed and/or improved. The steps to go through after installation are really much fewer than ever before, and very few things were broken that shouldn't have been - the only things that come to mind are the USB 802.11b Prism based dongle and the suspend to disk not working with the standard kernel.
Apart from that, it's actually been quite smooth sailing.

To put it more clearly: I really didn't have much to do, compared to some time ago, for basic setup. Sure, the wireless and Bluetooth took me some time to figure out, and I still don't know how to synchronise with my Samsung D500 mobile phone, but then again, who's perfect.

So all I can say at this point is: enjoy Linux!! ;-)


Return to top

If you have any comments you can discuss this information here: or you can contact me via email.

Valid HTML 4.0! Valid CSS!

Page first created: June 23rd 2005. Page last updated: 2005-07-23 14:50

Pages tested with but not specifically made for: lynx, konqueror, galeon, Opera, Mozilla, Firefox using, Quanta + and the Gimp on Mandriva Linux by aRTee
All contents © copyright 2003 - 2007, unless mentioned otherwise, published under the GNU Free Documentation License (FDL) by aRTee. Artwork and CSS don't fall under the FDL, standard copyright applies. Tux image from Larry Ewing. You may use anything published under the FDL on this site freely, as long as you include this copyright notice and a reference to the main address of this site:
